Cressi Pressure Gauge

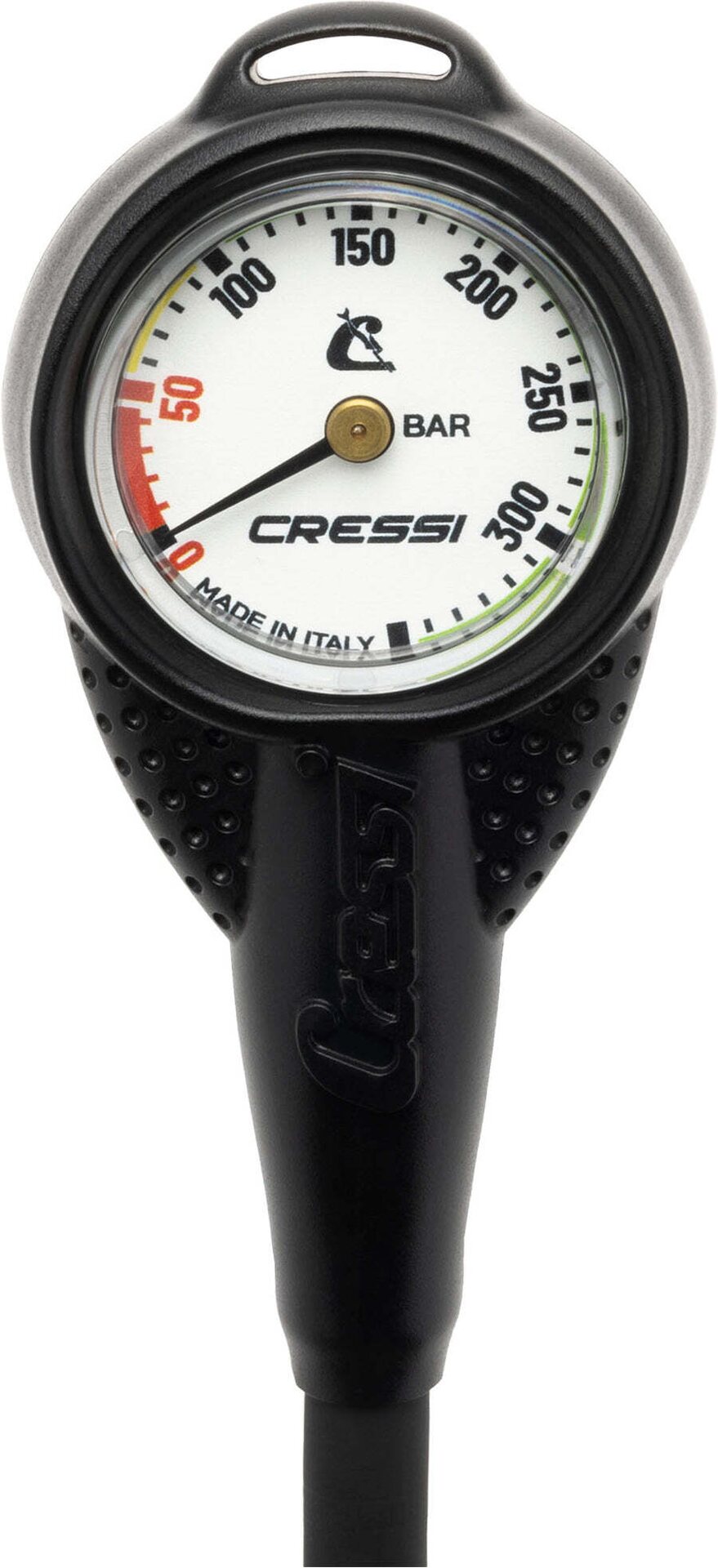

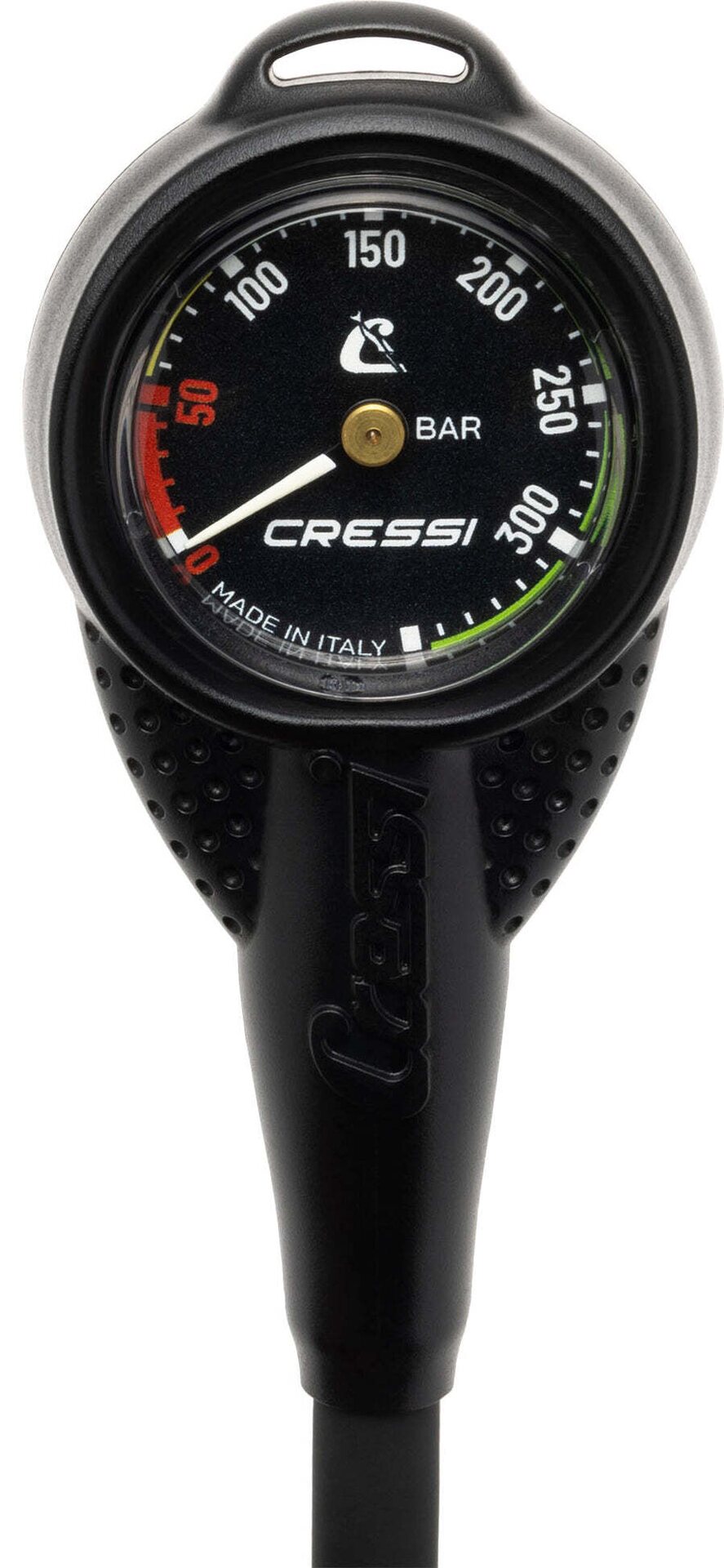

The Cressi Mini Pressure Gauge is a small, lightweight gauge specifically designed to avoid excessive strain on the regulator’s high pressure hose. The instrument has a metal case in chromed brass and is therefore very strong. The windshield is made so that it also acts as a pressure relief valve. If the pressure inside the instrument rises suddenly, the glass will rise slightly, allowing the overpressure to escape. The luminescence selector is calibrated in metric version to 350 bar and British 5000 psi. The area below the bar in area 50 is highlighted in red, the area between 50 and 200 is green, and the area at the end of scale 200 is light blue. The instrument is housed in a small, modern-shaped console made of polycarbonate and desmopane, two materials that provide protection from shocks and scratches while being very light. At the top of the cover there is a loop with which you can conveniently attach the meter to the desired place in your equipment, for safety.

Housing material: chrome-plated brass
End scale: 350 bar
Background: luminescent with colored parts
Pressure relief valve: on
Gauge diameter: 50 mm
Housing height: 14 mm
Total height of the instrument: 17 mm
Hose diameter: 11 mm
